The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

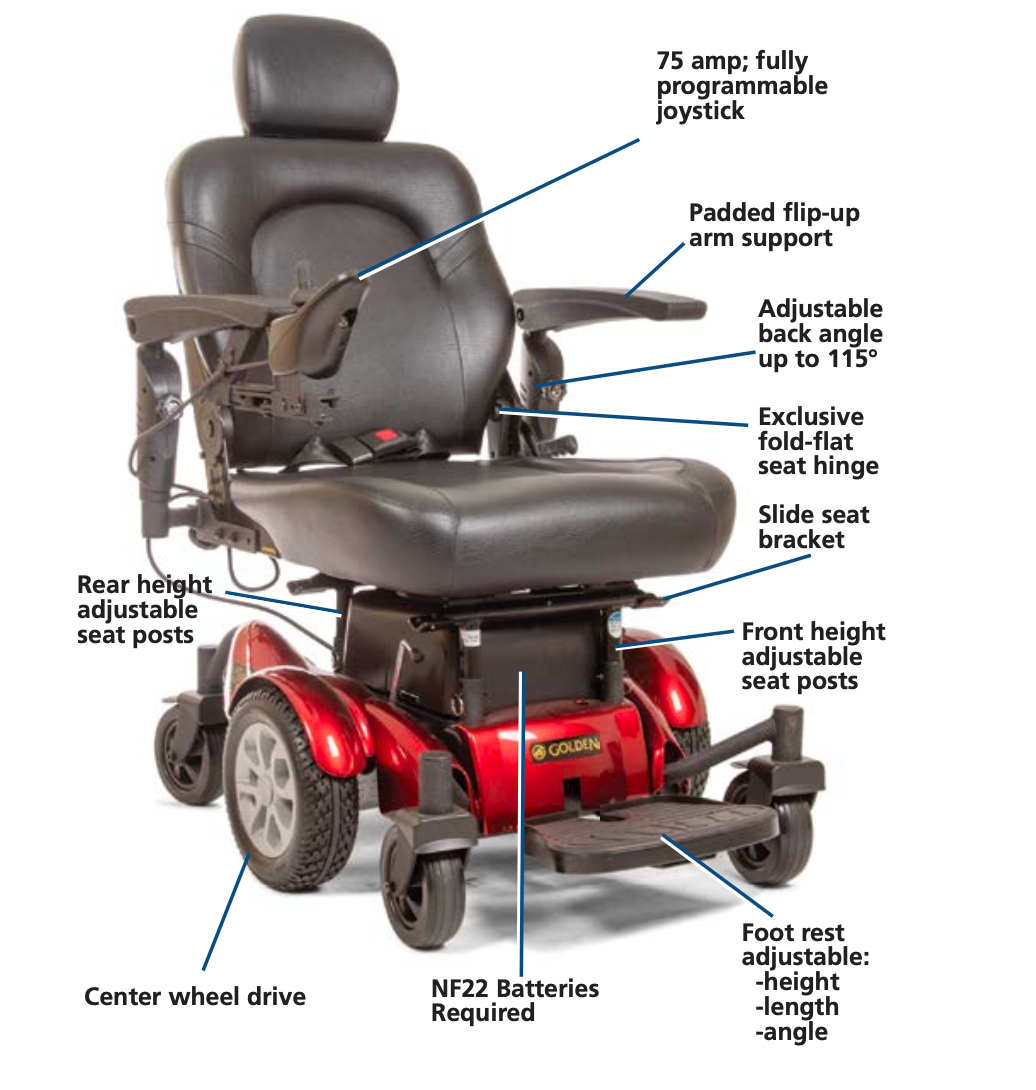

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to

Features:

• Standard captain’s seat with our exclusive fold-flat seat hinge design
• Optional seating includes ProFlex Seat and van/pan seat
• Exclusive slide seat mechanism for easy seat removal and attachment
• 450 lb. weight capacity
• Adjustable head rest and armrests
• 75 amp peak Dynamic Shark controller standard
• Off-board charger
• Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
• Uses 22NF batteries
• Model Number: GP620

Specifications

• Top Speed: 4.00 mph
• Turning Radius: 20.00"
• Ground Clearance: 3.50"
• Heaviest Piece: 101 lbs.
• Maximum Incline Rating: 6 º
• Battery Charge Distance: 12.00 miles
• Drive Type: Mid Wheel Drive
• Foldable: Yes
• Disassembles: No
• Standard Seat: Captain's Seat
• Standard Seat Size: 20” x 20”
• Standard Back Height - no headrest: 21"
• Standard Back Height – w/ headrest: 28.5”
• Maximum Seat to Floor Height: 23"
• Overall Width: 25.00"
• Overall Length: 40"
• Adjustable Angle Footplates: Yes
• Dampening Adjustment: No
• Frame Type: Heavy-duty
• Batteries: 2-NF22
• Batteries Included: Yes
• Battery Charger Type: Off Board
• Drive Wheel Size: 10"
• Caster Size: 6"
• Rear Caster Size: 6"
• Base Weight: 101.00 lbs.
• Standard Seat Weight: 51.00 lbs.
• Battery Pack Weight: 74.00 lbs.
• Weight Without Batteries: 155.00 lbs.
• Tire Type: Foam Filled

Videos

Warranty

• Warranty – Electrical Parts: 13 months

• Warranty – Batteries: 1 year
